Flexibele Kaakkoppeling
>
|
|
| Plaats van herkomst | cangzhou、 China |
| Merknaam | jude |
| Certificering | CE、ISO |
| Modelnummer | L150 |

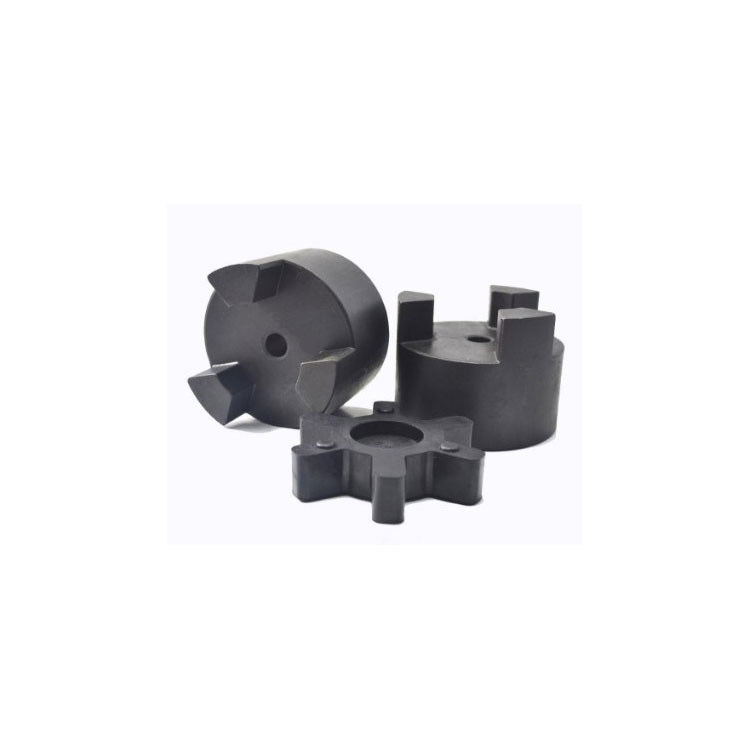

De eigenschappen van Lovejoy standaardl typen de koppeling van de Kaakspin:
1.Economical en het praktische gebruiken
2.Easy het terugtrekken zich
3.Simple bouw en lichtgewicht
4.NBR rubber met uitstekende weerstand tegen olie en drugs
5. Minimumruimte
6.No smering
7.Temperature: - 40~100℃
Het type van Lovejoy standaardl de koppelingsparameters en gegevens van de Kaakspin:
| Grootte | Type | Standaard droeg | Droeg metrisch | Droeg duim | Afmetingen | Torgue | Rotatiesnelheid t/min | Massa kg | ||||||
| Min | Maximum | Min | Maximum | A | B | C | D | E | nodig NM | |||||
| L035 | 1 | 3 | 3 | 8 | 1/8“ | 3/8“ | 16 | 20.2 | 7.8 | 6.6 | - | 0,5 | 30,000 | 0,03 |
| L050 | 1 | 6 | 5 | 15 | 3/16“ | 5/8“ | 28 | 43 | 12 | 15.6 | - | 3 | 17,000 | 0,13 |
| L070 | 1 | 9 | 7 | 19 | 3/16“ | 3/4“ | 35 | 50.7 | 12.7 | 19 | - | 5 | 13,000 | 0,24 |
| L075 | 1 | 9 | 9 | 25 | 3/16“ | 1“ | 45 | 55 | 12.7 | 21 | - | 10 | 10,000 | 0,40 |
| L090 | 1 | 9 | 9 | 28 | 3/16“ | 1 1/8“ | 54 | 55 | 12.7 | 21 | - | 16 | 9,000 | 0,68 |
| L095 | 1 | 9 | 9 | 28 | 3/8“ | 1 1/8“ | 54 | 64 | 12.7 | 25.5 | - | 22 | 9,000 | 0,71 |
| L099 | 1 | 12 | 12 | 35 | 7/16“ | 1 3/8“ | 65 | 72.5 | 19 | 27 | - | 45 | 7,000 | 1.22 |
| L100 | 1 | 12 | 12 | 35 | 7/16“ | 1 3/8“ | 65 | 88.5 | 19 | 35 | - | 50 | 7,000 | 1.40 |
| L110 | 1 | 15 | 15 | 48 | 1/2“ | 1 7/8“ | 84 | 108 | 22 | 43 | - | 90 | 5,000 | 3.00 |
| L150 | 1 | 15 | 15 | 48 | 5/8“ | 1 7/8“ | 96 | 115.4 | 25.4 | 45 | - | 150 | 5,000 | 5.00 |
| L190 | 2 | 19 | 19 | 55 | 5/8“ | 2 1/4“ | 115 | 133.4 | 25.4 | 54 | 102 | 200 | 4,200 | 7.60 |
| L225 | 2 | 19 | 19 | 65 | 3/4“ | 2 5/8“ | 127 | 153.4 | 26.4 | 64 | 108 | 300 | 4,200 | 9.00 |
Meer toepassingsscenario's, gelieve ons te contacteren.
